Plastic Mold Parts

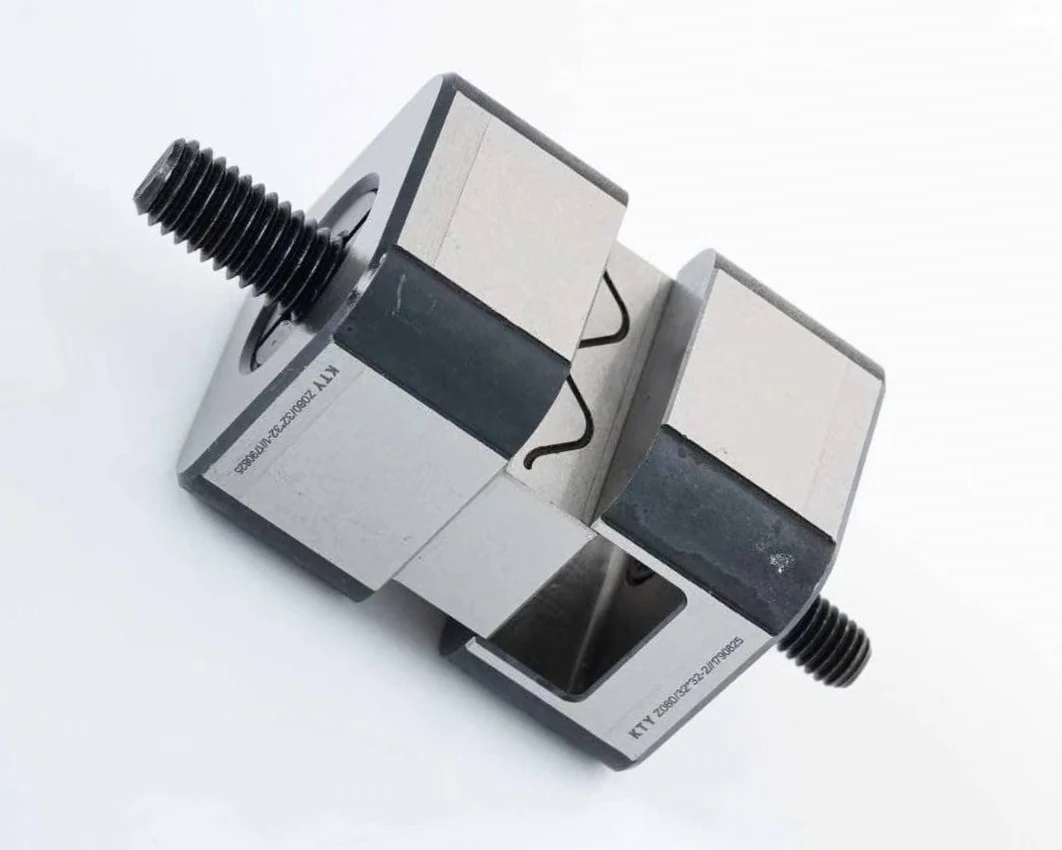

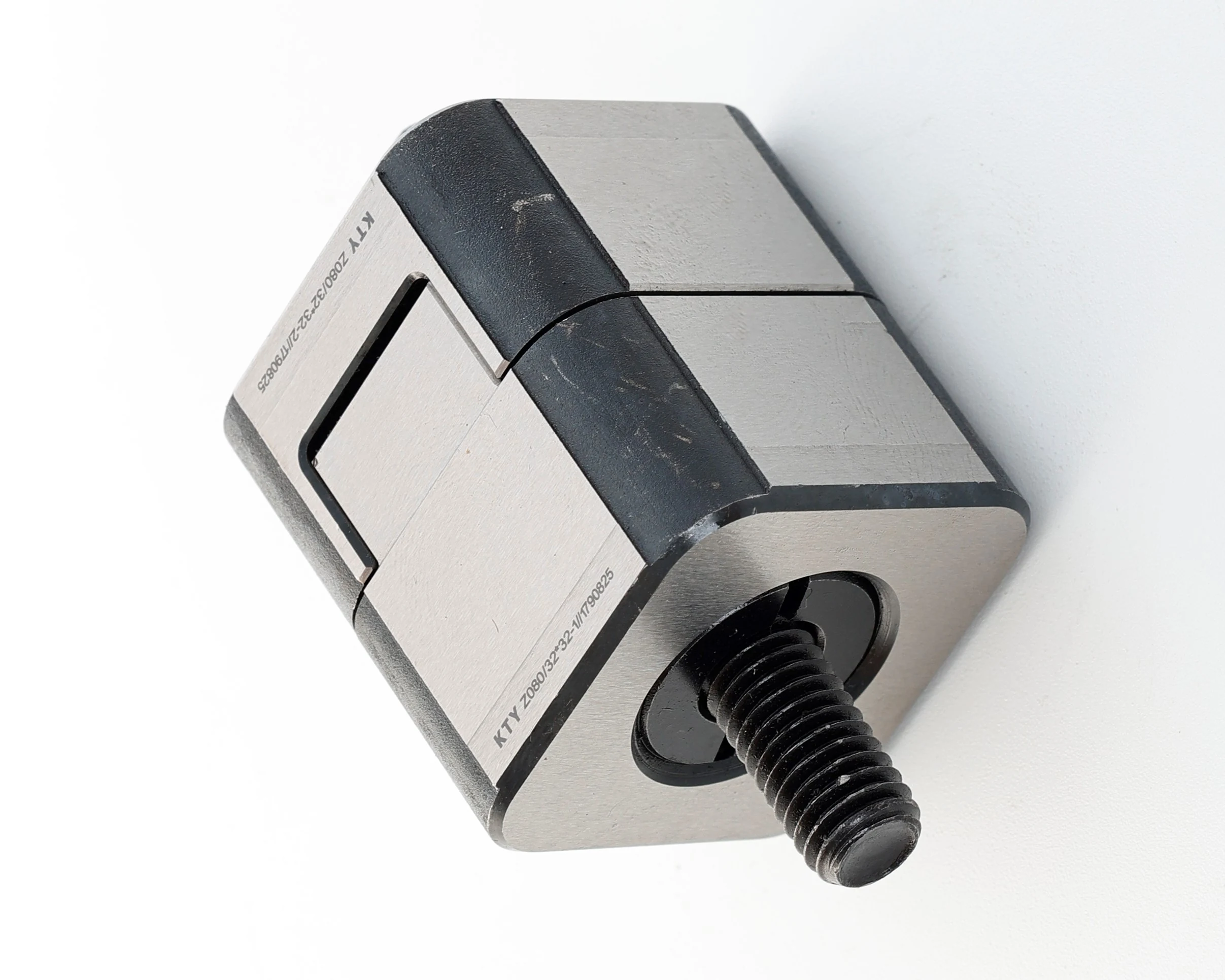

1.2343 Z080-32×32 Precision Dowel Pin, Standard Positioning Component for Plastic Injection Molds

Z080-32×32 standard positioning component, made of 1.2343 steel, vacuum heat treated to HRC 52-54, precision ground with tolerance within 0.005mm. Built-in oil grooves allow lubricant filling for long-term lubrication, ensuring high-precision mold closing. Suitable for mold inserts and all types of plastic injection mold bases. Compatible with HASCO standard, full stock for all Z080 standard sizes: 20×20, 25×25, 32×32, 40×40.

Project discussion parameters

Manufacturing basis

Confirmed customer drawing

Material

Confirmed per project

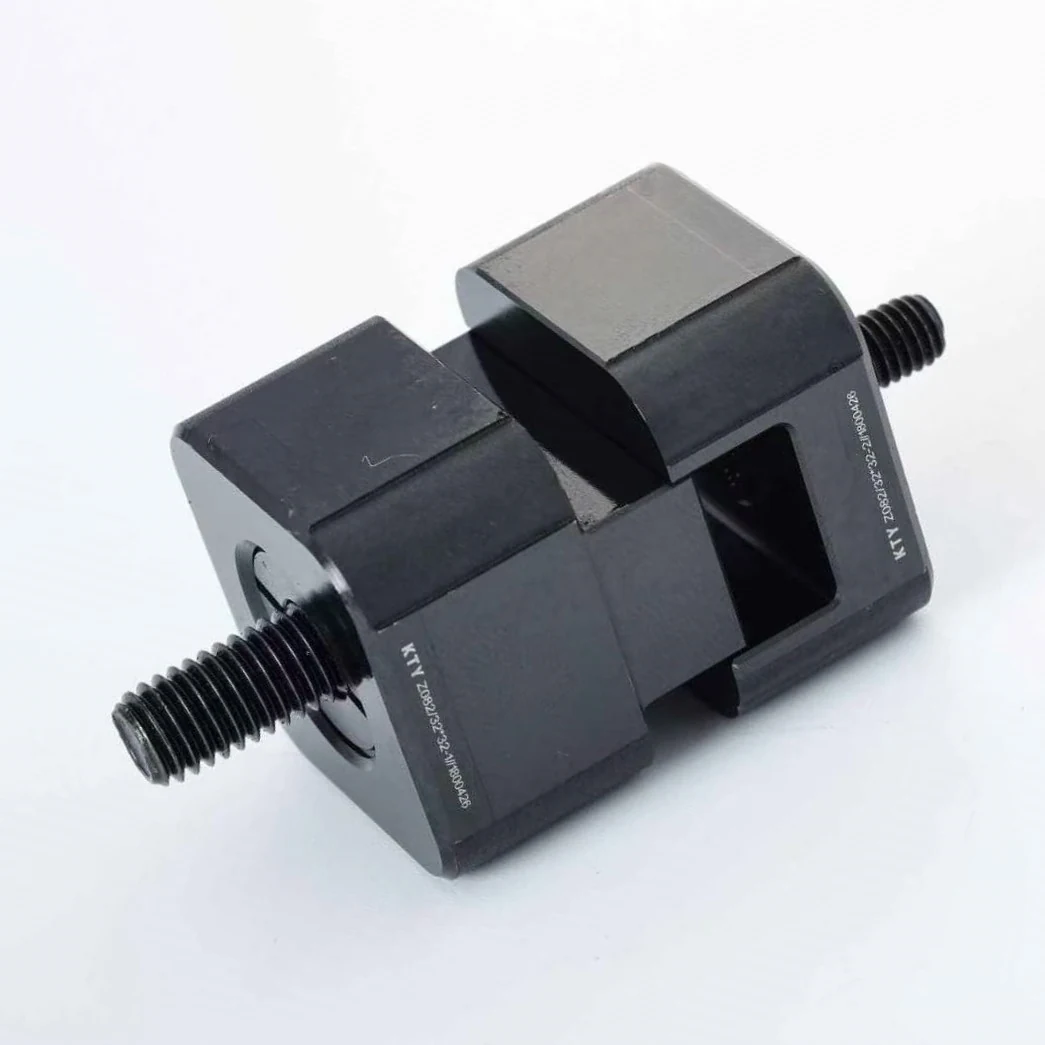

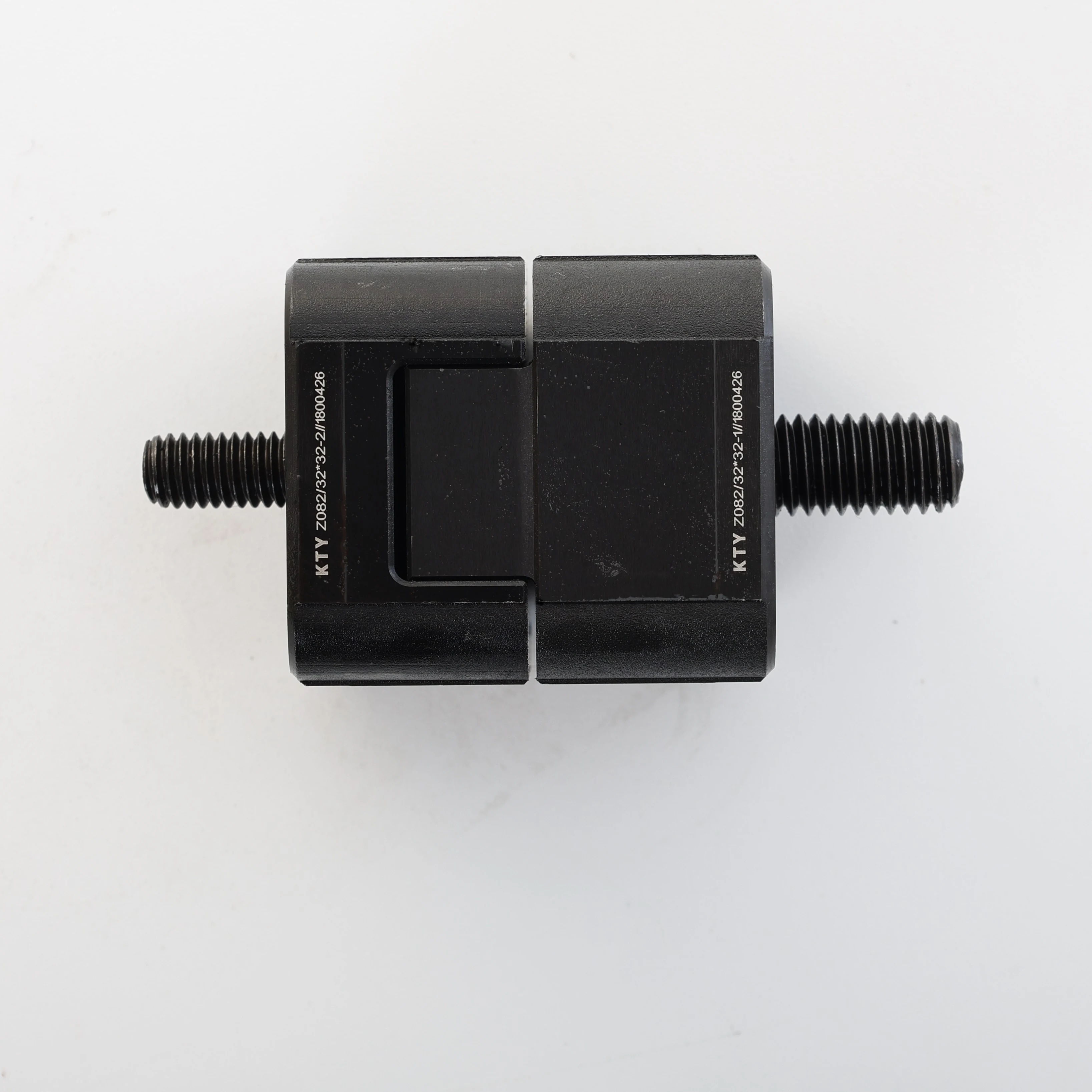

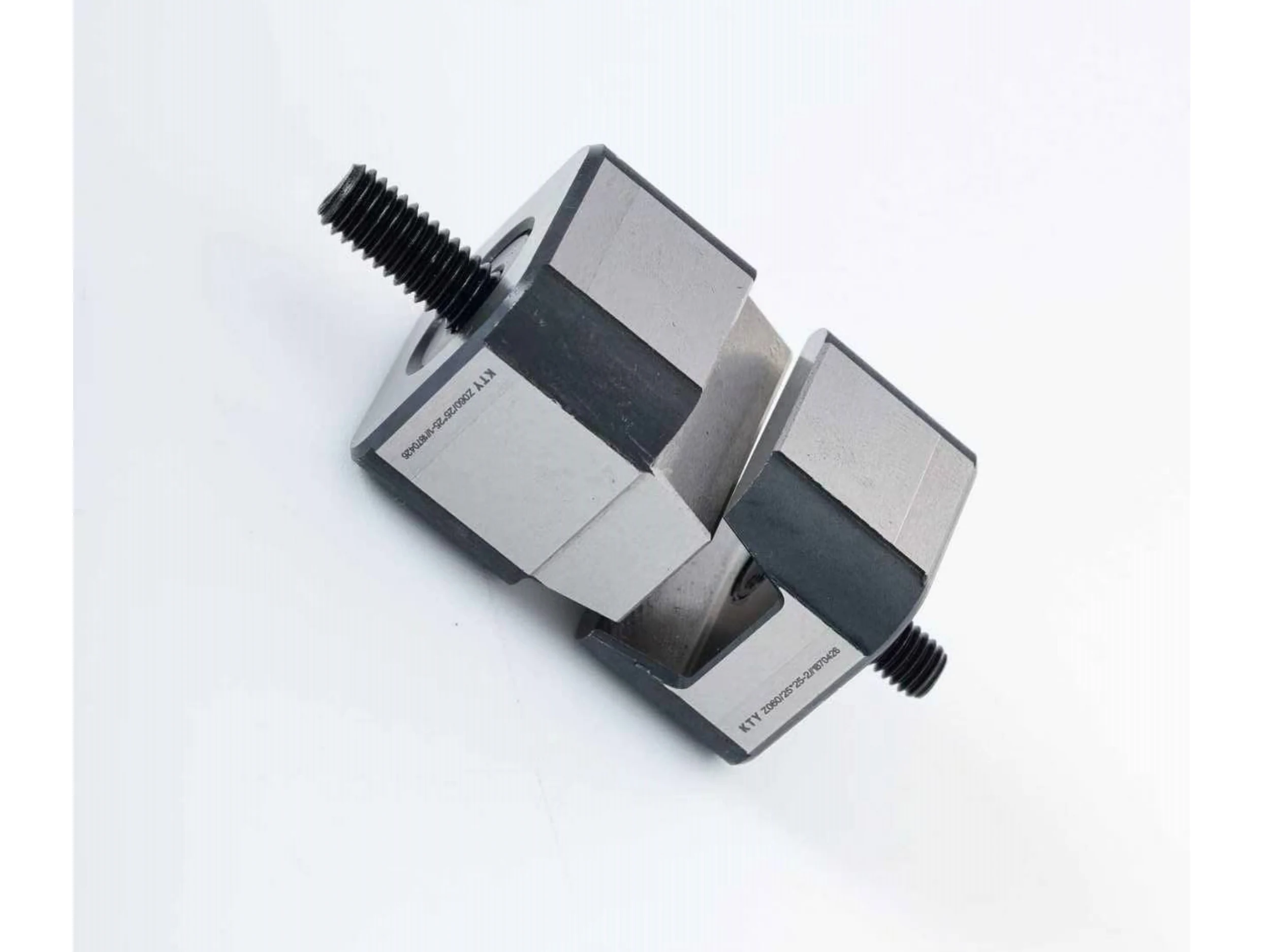

1.2343 / SKD61 Z082-32×32 Precision Positioning Component with DLC Coating, Compatible with HASCO Standard

Z082-32×32 standard positioning component, substrate optional 1.2343 or SKD61. The substrate is vacuum heat-treated to HRC 52-54 and precision ground with tolerance within 0.005mm. The product surface adopts DLC diamond-like carbon coating, with coating surface hardness of 2800~3000 HV. It features low friction coefficient and excellent wear resistance, ensuring smooth mold movement and high-precision mold closing alignment, suitable for mold inserts and various plastic injection mold bases. Full standard sizes of Z082 series are in stock: 20×20, 25×25, 32×32, 40×40. Compatible with HASCO standard.

Project discussion parameters

Manufacturing basis

Confirmed customer drawing

Material

Confirmed per project

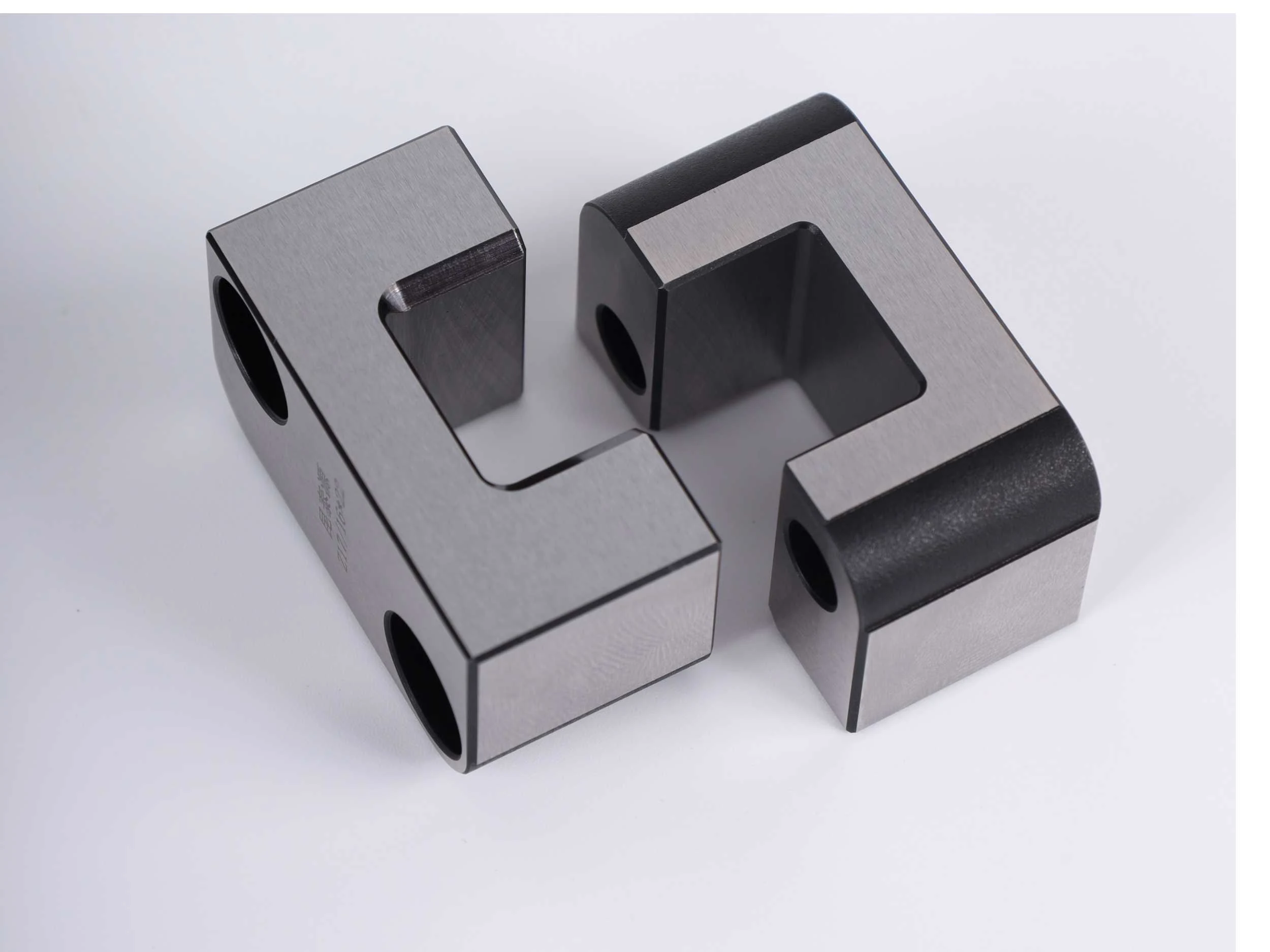

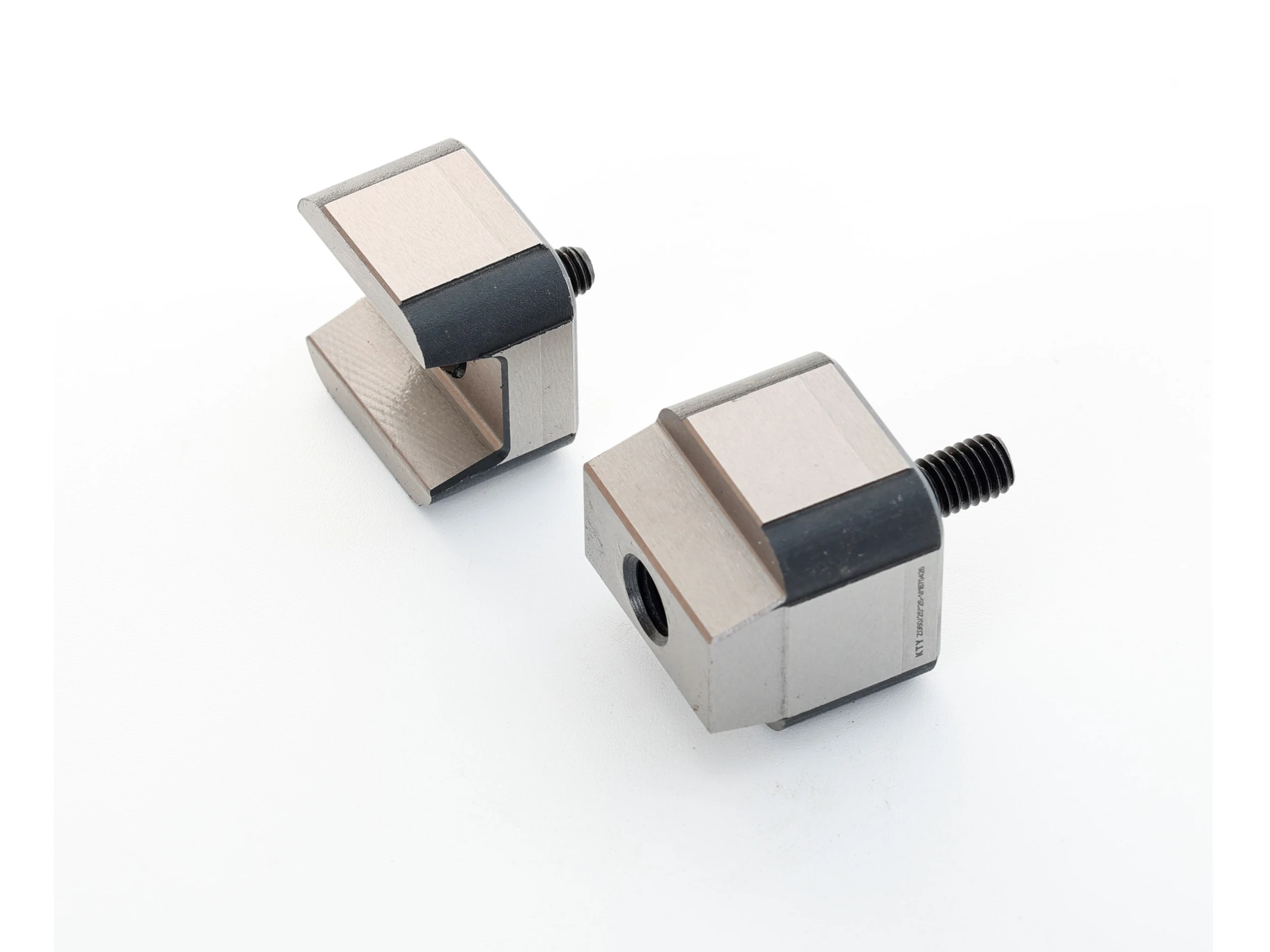

1.2343 / 1.2344 Z060 25×25 Precision Mold Positioning Component, Compatible with HASCO Standard

Z060 series precision mold positioning parts, substrate optional 1.2343 / 1.2344 mold steel. Stock sizes: 20×20, 25×25, 32×32, 40×40. The substrate is vacuum heat-treated to HRC 52-54 and precision ground. Used for mold closing limit positioning, custom non-standard sizes available according to drawings. Compatible with HASCO standard.

Project discussion parameters

Manufacturing basis

Confirmed customer drawing

Material

Confirmed per project

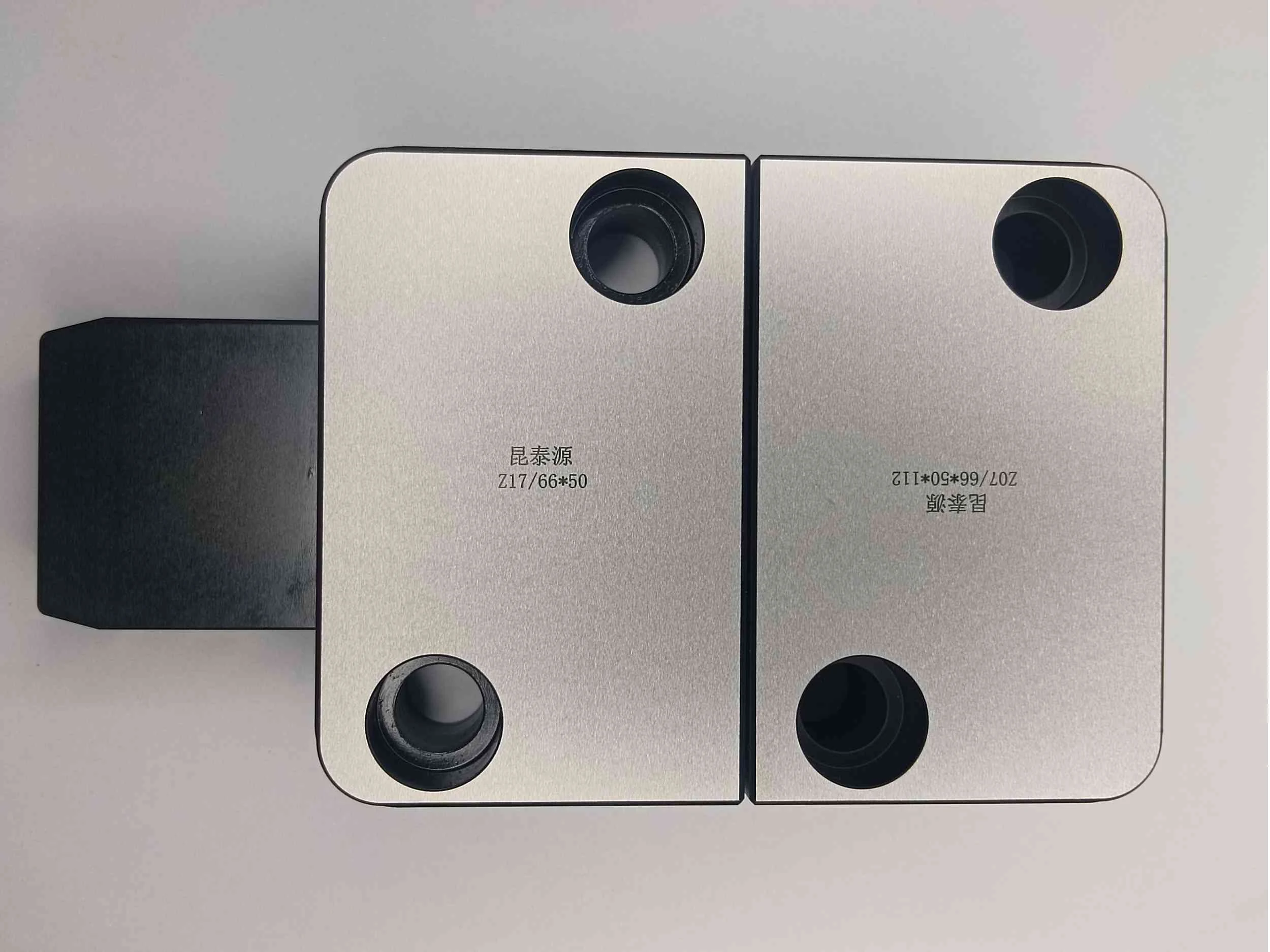

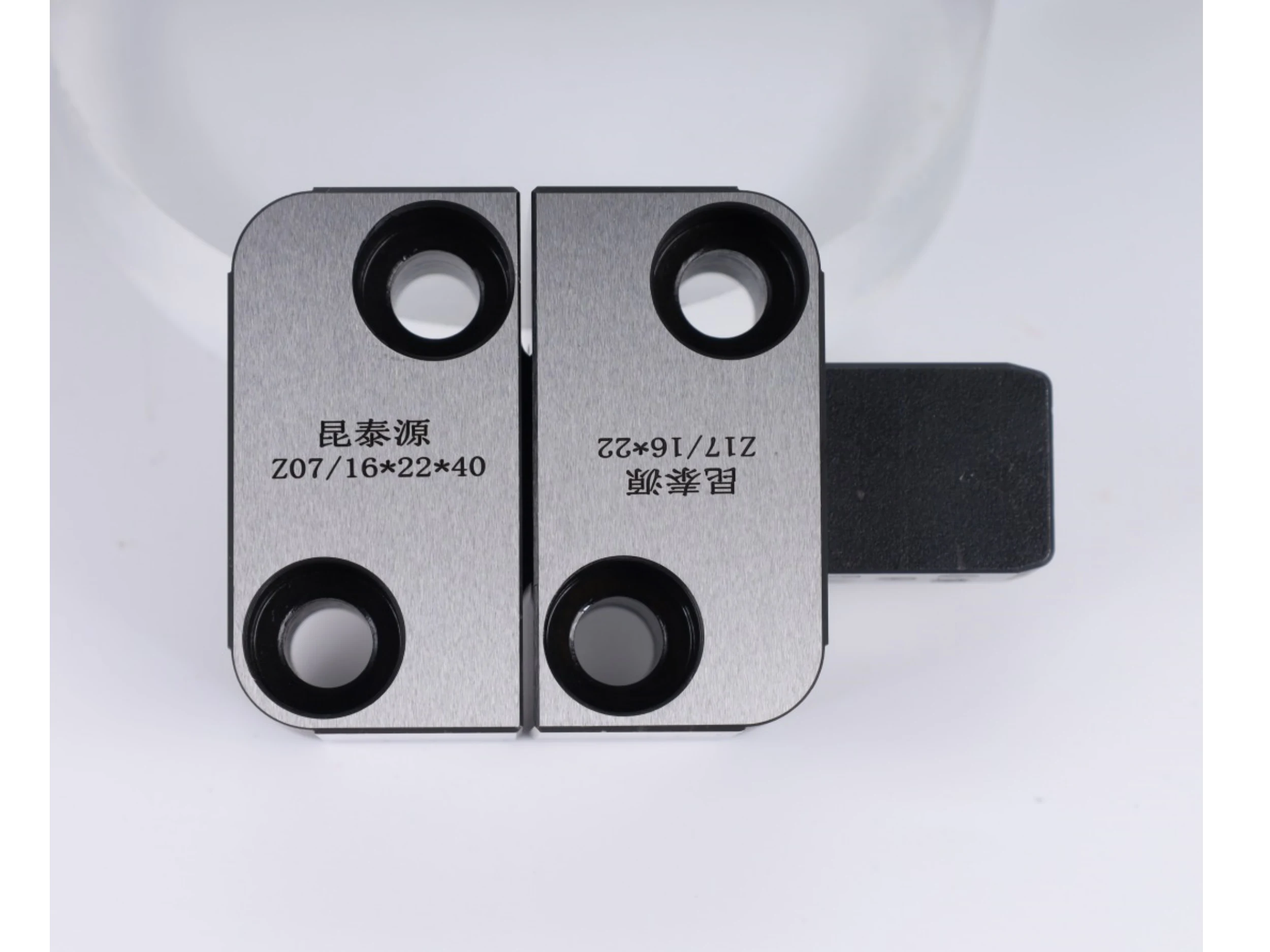

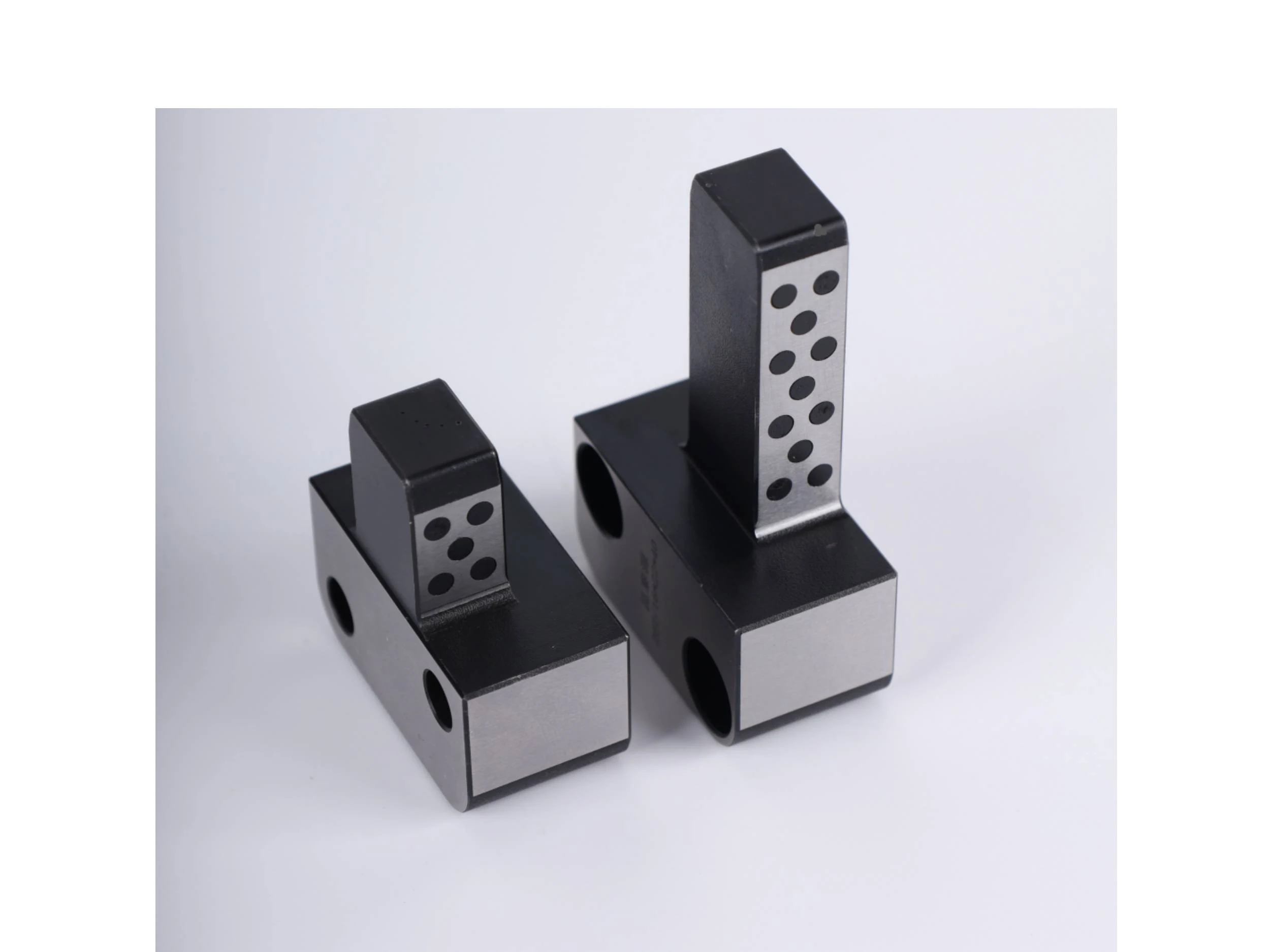

Z0717 Graphite Self-lubricating Positioning Insert

Material options: 16MnCr5 / 21MnCr5. Graphite embedded for maintenance-free sliding. Vacuum heat treated, hardness: HRC60-62 for inserts, HRC54-56 for sleeves. Interchangeable with HASCO standard. Small batch & non-standard custom machining available.

Project discussion parameters

Manufacturing basis

Confirmed customer drawing

Material

Confirmed per project

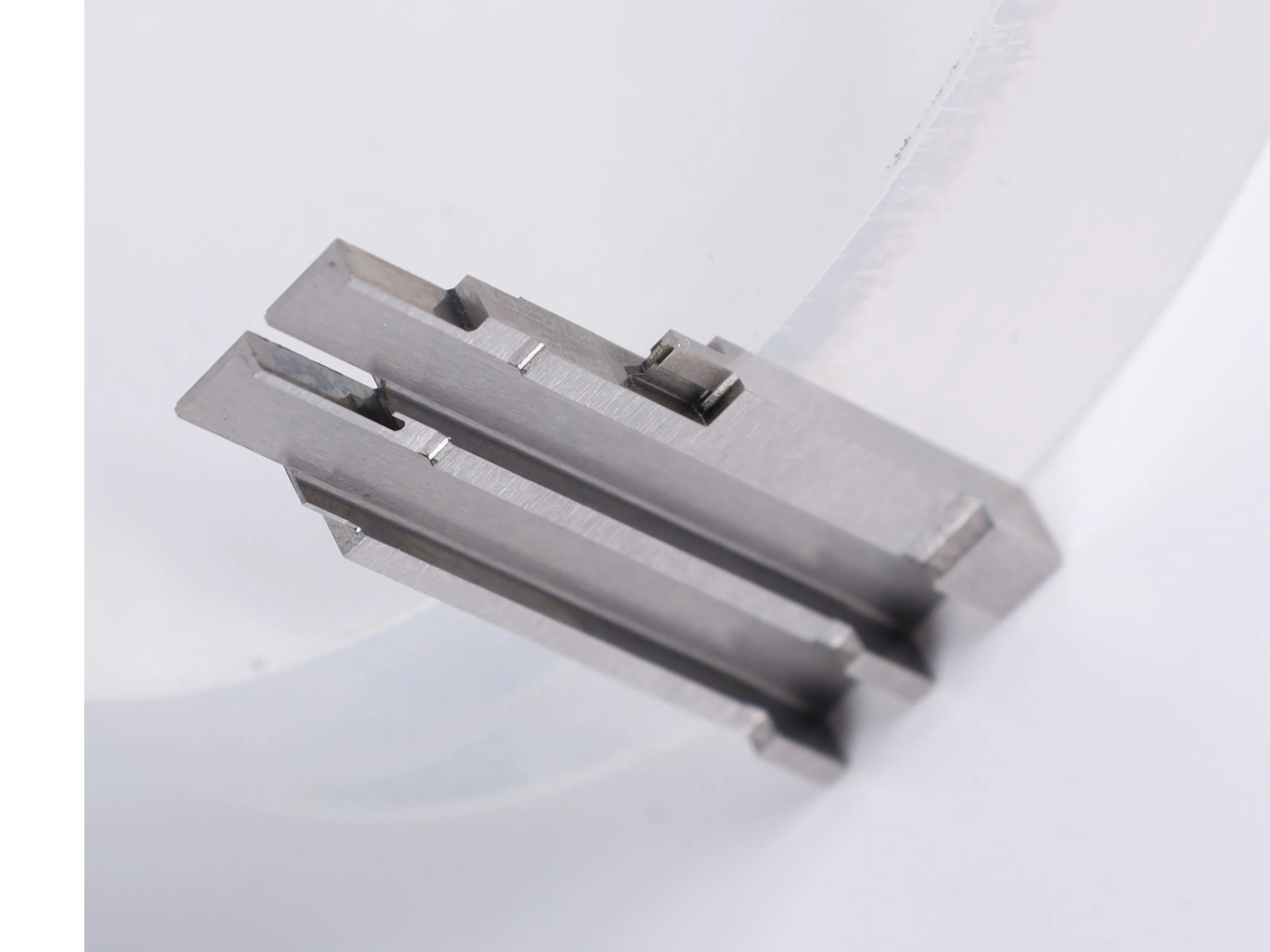

ASSAB VAKING Steel Plastic Mold Connector Cavity Insert, HRC 56–58, High Toughness, PIN Breakage Resistant, Precision Grinding, Custom Mold Insert

This plastic mold connector cavity insert is manufactured from ASSAB VAKING steel and treated by vacuum heat treatment, hardness HRC 56–58. The material boasts excellent toughness. Tiny PIN pins and micro inserts hardly break or deform during long-term use, greatly extending the service life of injection molds. It is processed by precision grinding to achieve high dimensional accuracy. Custom production is available according to your drawings. The final structure, dimensions and delivery terms shall be mutually confirmed based on customer drawings.

Project discussion parameters

Manufacturing basis

Confirmed customer drawing

Material

Confirmed per project

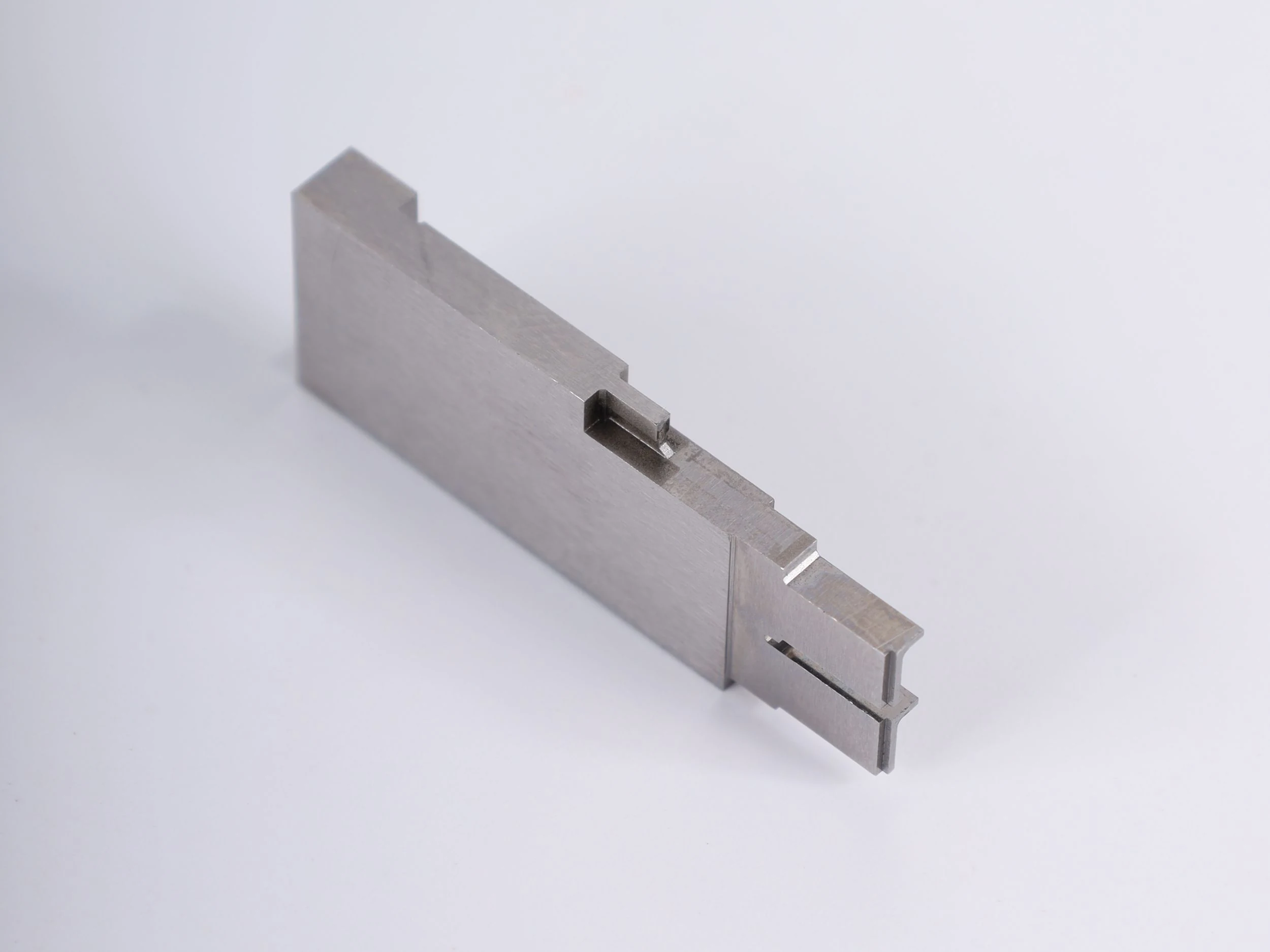

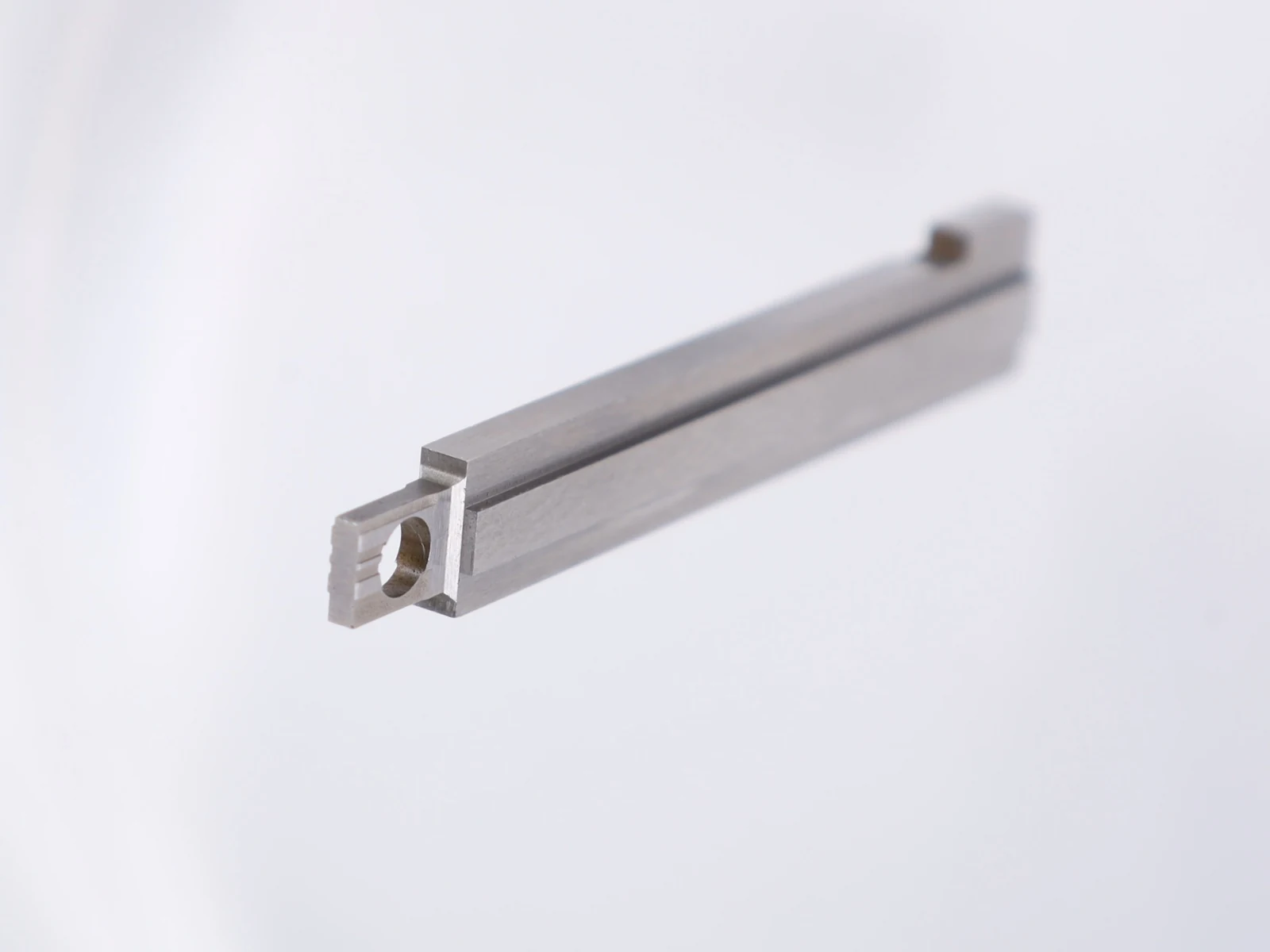

Connector Plastic Mold Inserts

Made from ASSAB VAKING raw material, vacuum‑heat‑treated to HRC56‑58. Excellent toughness and good wear resistance, suitable for plastic moulds. Processed by precision grinding, Sodick wire‑cut EDM and EDM discharge machining. Accuracy ranges from 0.002 to 0.005 mm. Non‑standard customisation available according to drawings. Production will be arranged upon mutual confirmation of customer drawings.
